Cabinet Envelope
Record selected-model dimensions, door swing, player stance, aisle, egress, and component-removal clearance.
Commercial arcade planning

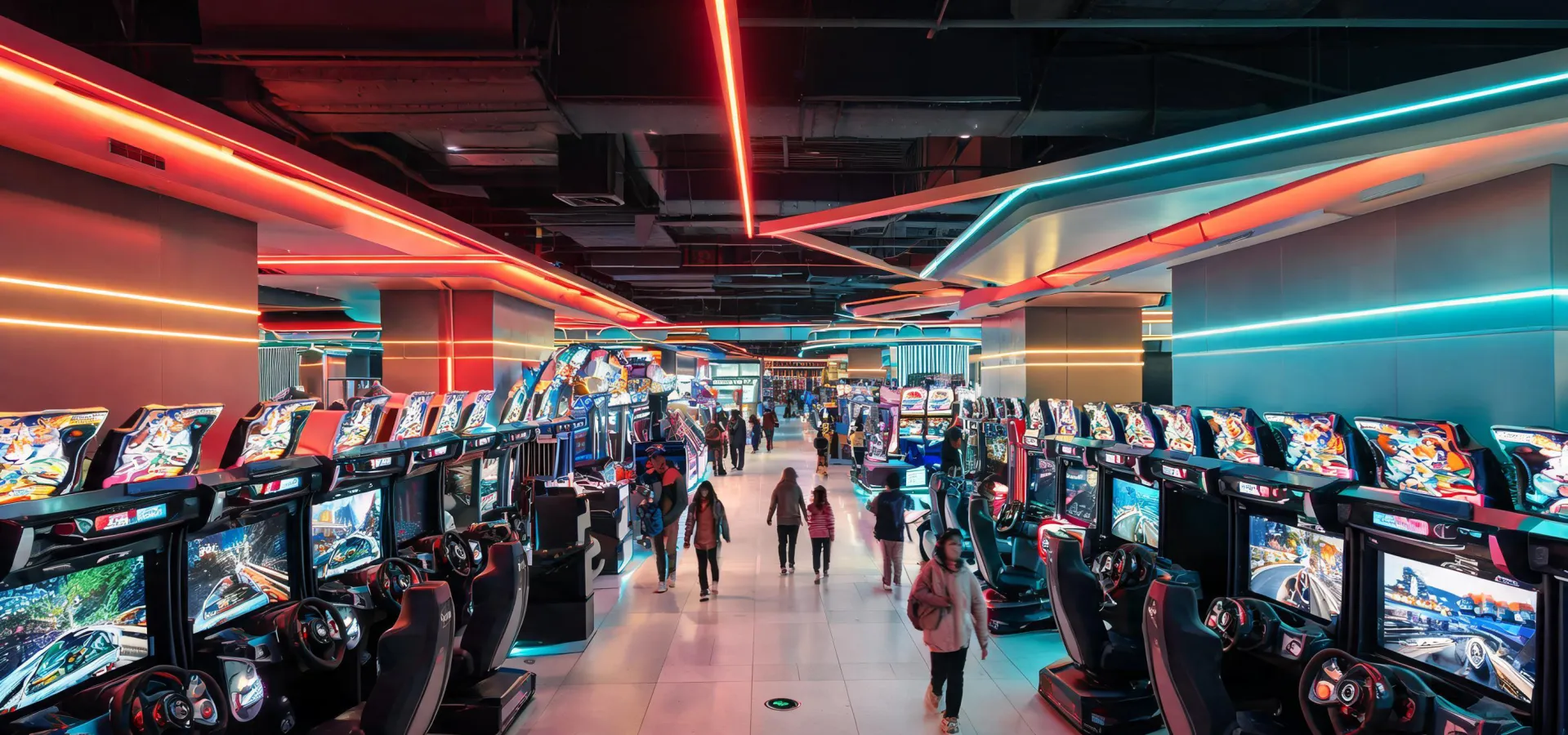

Raw Thrills Arcade Systems, Planned Around the Floor
Map cabinet footprint, 120V or 220V branch power, managed Ethernet, cashless or coin-op interfaces, service clearance, and acceptance checks before equipment arrives.
Operator readiness01 02 03 04 05 06
Six Decisions Behind a Serviceable Arcade Floor
Electrical Load
Confirm nameplate voltage, branch circuit, startup load, isolation point, and local electrical review.
Payment Interface
Assign the bill validator, coin comparator, card reader, pricing table, reconciliation, and outage behavior.
Network Boundary
Document managed Ethernet or Wi-Fi scope, VLAN ownership, remote access, logs, and recovery tests.
Redemption Logic
Freeze ticket payout ratio, prize-economy inputs, meter checks, and change-control responsibility.
Field Acceptance
Test boot, controls, display, sound, payment, interrupted play, meters, alerts, and rollback.
Specification desk
Open the Evidence Group You Need
| Reference envelope | 900 × 1,800 × 2,400 mm is an industry planning example only; use the selected-model drawing. |
|---|---|
| Site checks | Loading path, floor load, player zone, egress, sightlines, acoustics, ventilation, and service-door travel. |
| Payment | Coin-op / cashless card system, validator or reader, pricing table, meters, refunds, and reconciliation. |
|---|---|
| Network | Managed Ethernet, approved remote access, time synchronization, event logs, firmware package, and rollback media. |
| Applicable reviews | UL electrical safety and FCC Part 15 may apply by exact model and radio configuration; local approval remains separate. |
|---|---|
| Acceptance pack | Configuration register, test conditions, observed results, exceptions, corrective action, retest, and operator sign-off. |
Machine Mixes for Different Operating Models

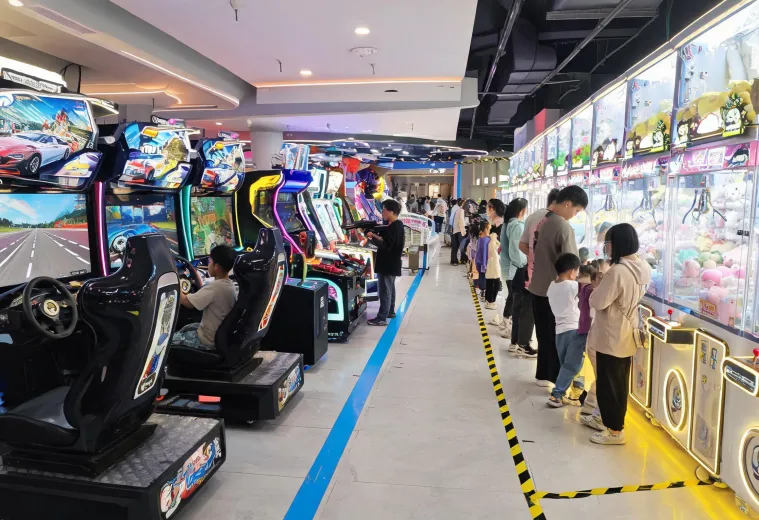

Family Entertainment Centers
Balance anchors, redemption dwell time, party circulation, cashless integration, prize-counter flow, and technician access.

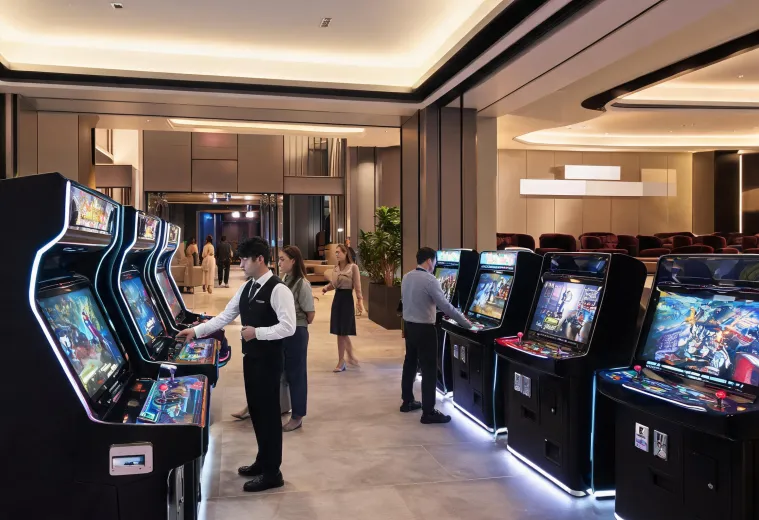

Cinemas, Resorts & Mixed-Use
Control noise, sightlines, opening hours, staffing, adjacent tenants, and recovery behavior during network interruption.
Evidence Paths, Verified by Model and Scope
UL
electrical scopeFCC Part 15
RF-device scopeCE
market-specific reviewIAAPA
membership is not certification
electrical scopeFCC Part 15
RF-device scopeCE
market-specific reviewIAAPA
membership is not certification
These labels identify possible evidence paths, not blanket Raw Thrills certifications. Confirm the legal entity, model, revision, market, issuer, and validity before publication or procurement.
11retained product terms
4technical terms mapped
3acceptance stages
0fabricated search volumes
Convert the Arcade Wish List Into a Testable Scope
Bring the measured plan, machine mix, operating hours, payment architecture, network owner, staffing assumption, and opening window.
